🚗 Introduction: Why Teardown a Smart Jump Starter?
Modern jump starters have transformed from simple car tools to multifunctional electronic devices. Many now feature USB-C fast charging, built-in LED flashlights, and advanced battery protection systems. But what exactly is inside such a compact powerhouse? In this article, we delve into a detailed jump starter teardown to uncover its internal components.
In this teardown, we provide a step-by-step disassembly of a high-performance smart jump starter. You’ll see the internal components, PCB layout, and the full engineering approach that powers this rescue tool. If you’re asking “how does a jump starter work inside?” or “what’s inside a jump starter?”—you’re in the right place.
🧱 Outer Shell & Materials: First Layer of Protection
The outer casing is made from a dual-shot molded ABS + TPU material, offering:
- Excellent impact resistance
- Non-slip grip texture
- Integrated heat vents to prevent internal overheating
This shell forms the first defense against environmental hazards like rain, snow, and accidental drops. Designers must balance aesthetics, ruggedness, and cost here.
💡 Tip: Using overmolded TPU on edges improves drop performance without adding weight.
🔧 Teardown Step-by-Step: How to Open It Safely

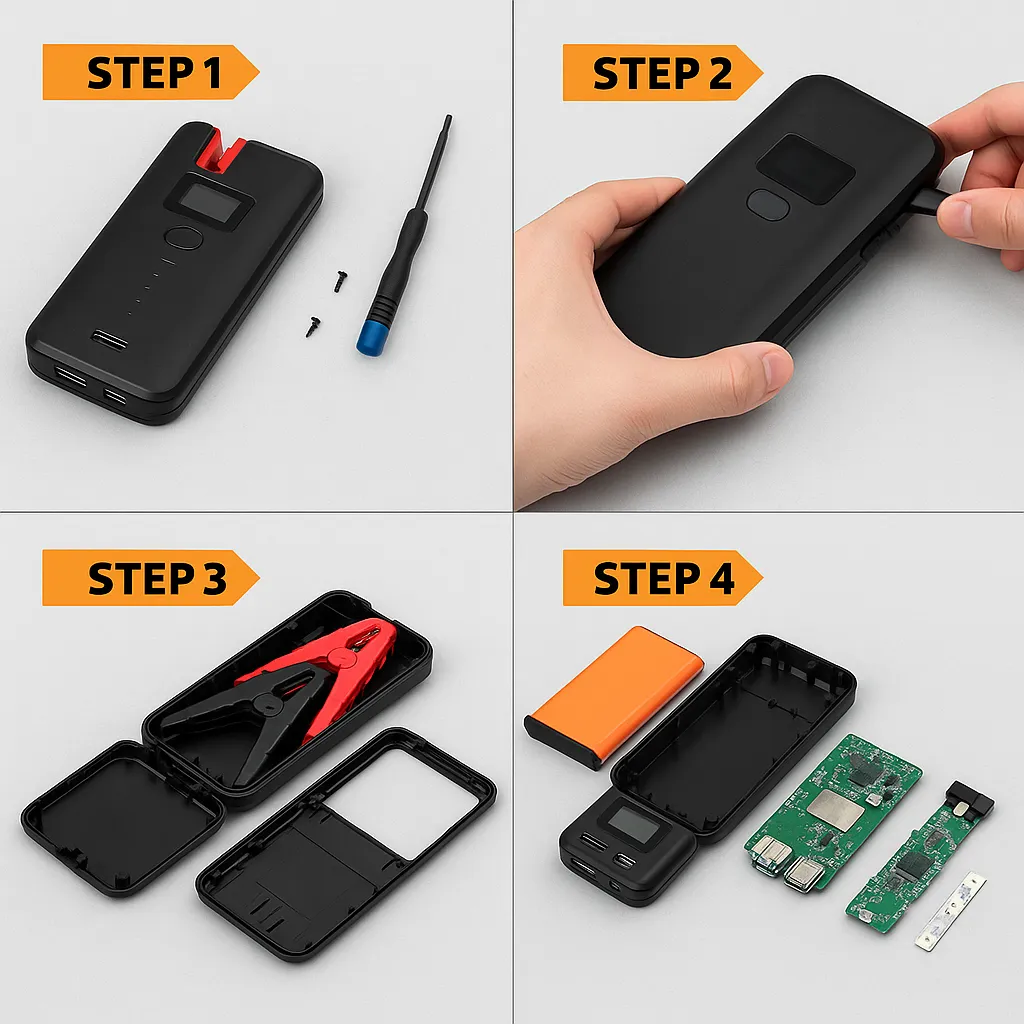

If you’re wondering how to teardown a jump starter safely, follow this general disassembly workflow:
- Remove visible screws under the rubber feet or stickers
- Pry open the enclosure using a plastic separator tool to avoid damaging clips
- Disconnect battery terminals before touching the mainboard
- Detach:
- Battery Pack
- Control PCB
- USB/PD module
- LED light array
- Power switch board
⚠️ Always wear gloves and ensure the device is fully discharged before attempting a teardown.
🧩 Internal Structure & Component Layout
Once opened, we can explore the jump starter internal structure, which generally includes:
- 4-cell lithium-polymer battery pack (14.8V, 37Wh)
- Main PCB with MOSFET array, BMS, and MCU
- USB-C Power Delivery module (65W output)
- LED torch board (multiple brightness modes)
- Digital display module (battery % and error codes)
- 12V car clamp connector module with reverse polarity protection
- Cooling foil or thin copper heatsinks over heat-sensitive areas
This internal components teardown shows how compact and highly integrated the device is. The goal is to deliver high peak current (1000A) in short bursts while maintaining temperature control and long-term durability.
💻 PCB Layout & Engineering Insights
The jump starter PCB layout reflects thoughtful power management engineering:
- Parallel MOSFETs near output terminals for surge control
- NTC thermistors for battery temperature monitoring
- XT60 or EC5 battery connectors for secure high-current transmission
- STM32-based MCU or similar chip for real-time management
- USB-C controller (e.g., IP2726 or STUSB4500) on a separate daughter board
- Dual copper planes for current delivery and ground shielding
📌 From a design-for-manufacturing (DFM) standpoint, the PCB shows modular thinking, enabling easy upgrades of charging interfaces without changing the power stage.
📋 Parts List (BOM) and Design Decisions
Below is a simplified jump starter parts list (also known as BOM):
| Part Name | Description |
|---|---|
| Battery Pack | 4S1P 10000mAh LiPo (high discharge rate) |
| Main PCB | Power stage + BMS + MCU |
| USB-C Module | 65W PD output |
| Display Module | 0.96” OLED or segment LCD |
| Clamp Connector Board | Reverse-polarity relay & fuse |
| Housing Material | ABS+TPU, IP54 grade |
| Accessory Ports | USB-A, USB-C, DC Barrel Jack |
| LED Lighting Module | COB LED strip with push button control |
🧠 Design tradeoffs include:
- Choosing between LiPo (compact, high discharge) vs LiFePO4 (stable, longer lifespan)
- Keeping cost down while offering fast USB-C output
- Ensuring thermal protection without active cooling (fan)
🔬 Jump Starter Material and Component Breakdown
Understanding the jump starter material choices helps inform better sourcing and product customization:
- Battery: Soft-pack LiPo vs 18650 cell array
- Housing: Reinforced polycarbonate for premium models
- Clamps: Copper-plated steel vs solid copper (higher cost, lower resistance)
- Display: Segment LED vs OLED (power vs visibility tradeoff)
- Connectors: Integrated vs modular design (affects repairability)
All these components contribute directly to user experience, especially in harsh environments like winter breakdowns or desert road trips.
🧠 Final Thoughts: What a Teardown Tells Us About Product Design
A teardown isn’t just for curiosity—it’s a window into real-world product design tradeoffs.
We’ve now answered:
- how does a jump starter work inside
- what’s inside a jump starter
- how to teardown a jump starter safely
- and uncovered its full internal structure and engineering logic
Whether you’re sourcing an OEM jump starter, designing your own, or evaluating factory quality—understanding these internal details is key to launching a reliable, user-loved product.
