Power Bank Design Improvement
Unlocking the secrets behind compact fast-charging power banks helps brands develop better products. This guide explores a full teardown of a 30W USB-C power bank and identifies realistic design improvements. Whether you’re evaluating how best to improve power bank design or curious about the inner workings of PD fast charging teardown processes, this article delivers practical insights.
🧩 Overview: A Compact Power Bank with 30W Output

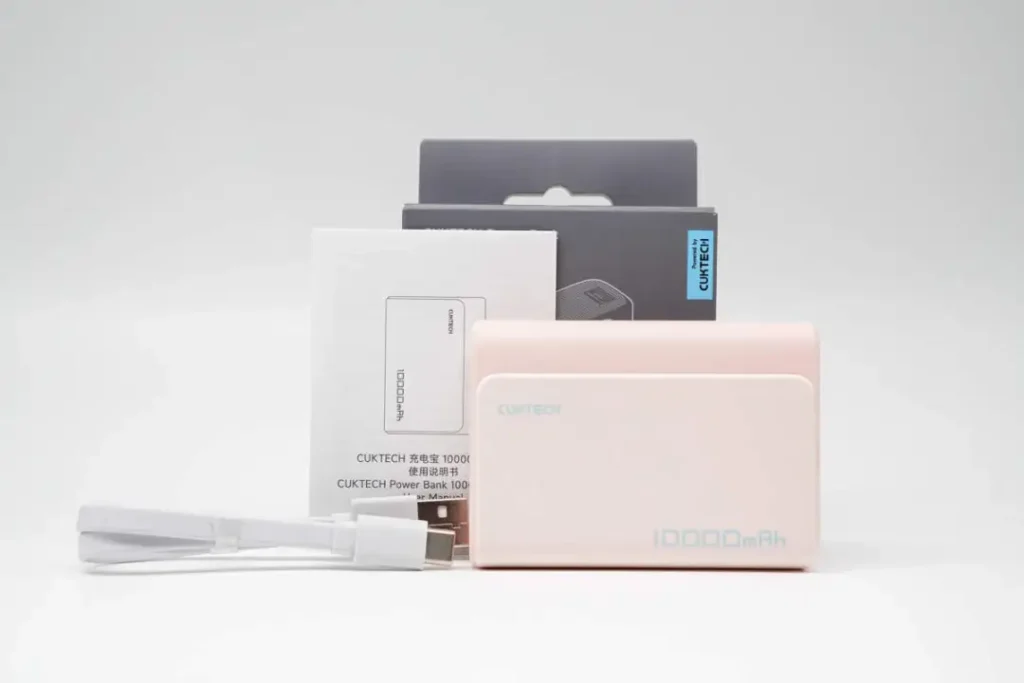

The teardown unit is a 10,000mAh PD 30W fast charging USB-C power bank. While, its compact body houses two 21700 lithium-ion batteries and dual ports—USB-A and USB-C. The case design includes an LED light strip for battery level display thus reflecting its thoughtful design improvements.
Key features:
- Battery: Dual EVE 21700 cells
- Output: 30W PD via USB-C, 33W max via USB-A
- Charging Protocols: PD, PPS, UFCS, QC, SCP, FCP
This configuration offers high compatibility across mainstream devices, hence making it an ideal compact power bank for daily use.
🔧 Power Bank Teardown Guide Insights
Shell & Frame Construction

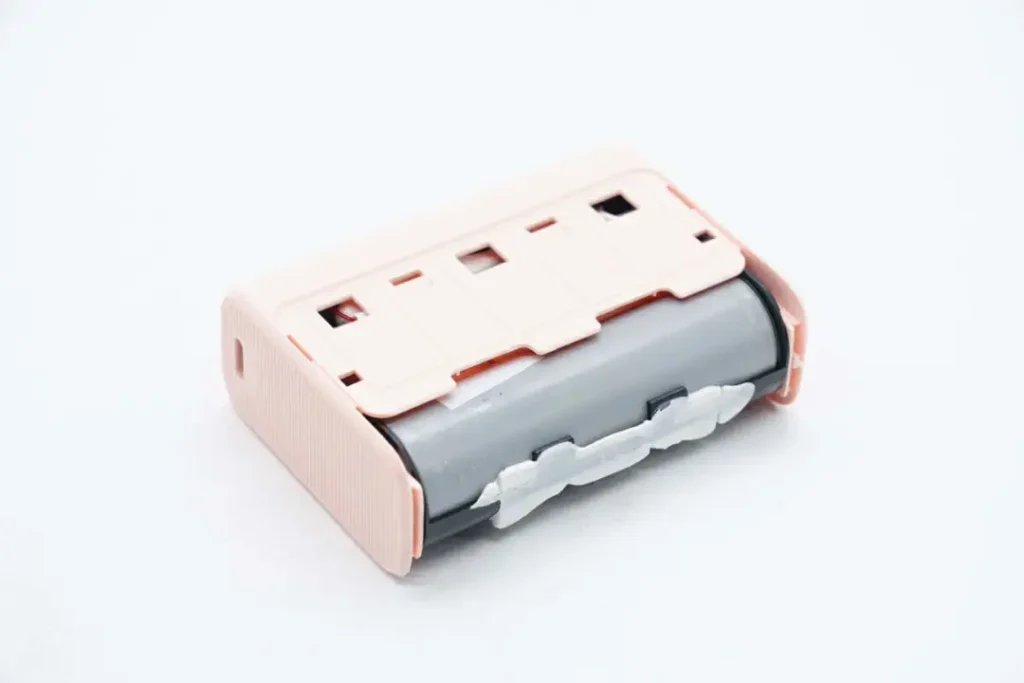

The shell is made of matte plastic and held together with clips and adhesive. Internally, a black plastic frame supports the PCB and battery structure in a way, thus could benefit from design improvements.
Battery Module

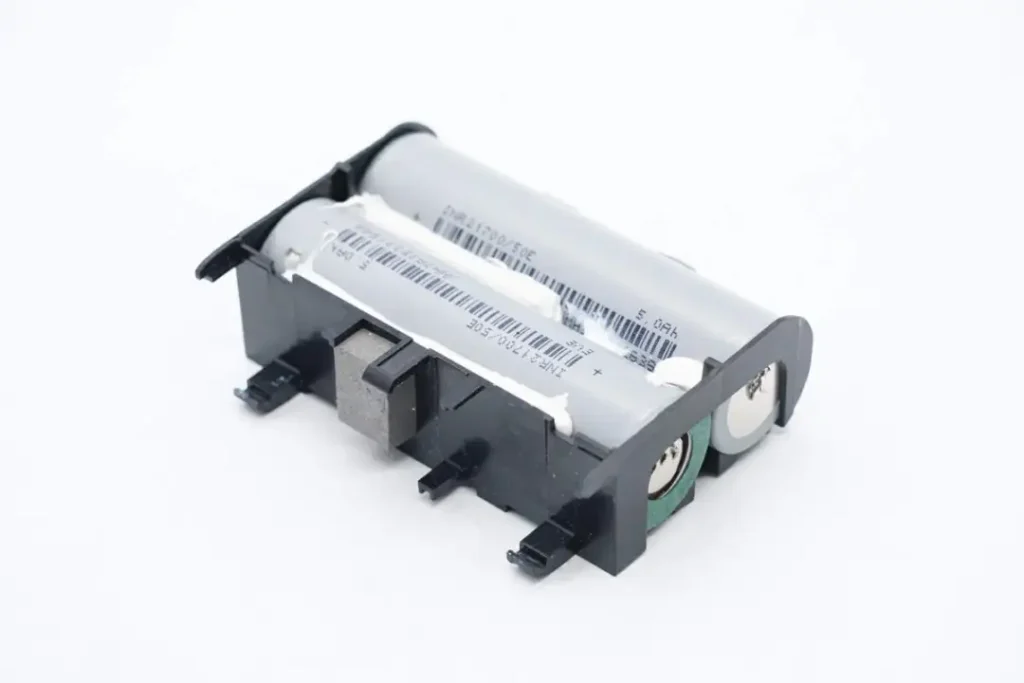

Using two EVE 21700 INR21700/50E cells, each rated at 5Ah. Attaching a thermal resistor for temperature monitoring. Also, connecting the cells in series (2S configuration) and affixed securely with adhesive, showcasing robust design principles.
PCBA overview
The board is cleanly laid out with protocol chips, inductors, and switch MOSFETs. Including large MLCC capacitors and an IC-controlled SC8905 buck-boost chip enhances efficiency, revealing areas for design improvement.
⚙️ Core Components Explained
Power Management IC (PMIC): SC8905
This IC from Southchip supports 2-4 cell charging, reverse discharge, and programmable current via IC. So it ensures protection from overcurrent, overvoltage, and overheating, showing a smart design improvement for power management.
Protocol Chip: CSU3AF10
This USB-PD controller from Chipsea supports PD 3.0, QC 4.0, SCP, and UFCS. So it ensures smart negotiation with multiple fast-charging protocols, which are considered design improvements.
Battery Protection: CM1020-H
The CM1020-H monitors the battery against overcharge, discharge, and short-circuit conditions, displaying key design enhancements.
🧪 Performance Features: Fast Charging Verified
Using a POWER-Z KM003C meter:
- USB-C Port supports PD3.0, PPS, QC4.0
- USB-A Port supports UFCS, SCP, FCP, AFC
This broad protocol support ensures the power bank performs well across various devices, especially Android models, showcasing design improvements.

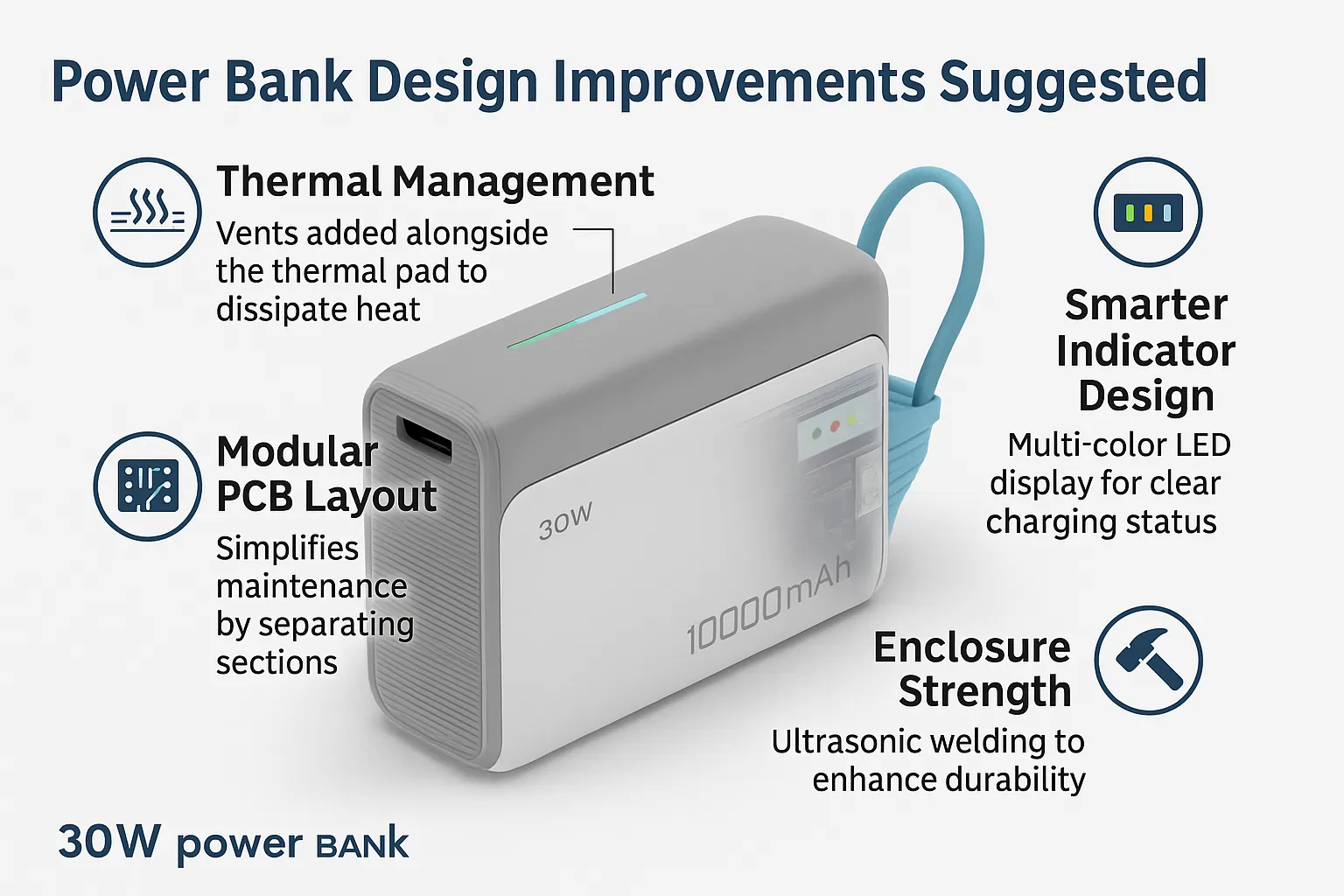

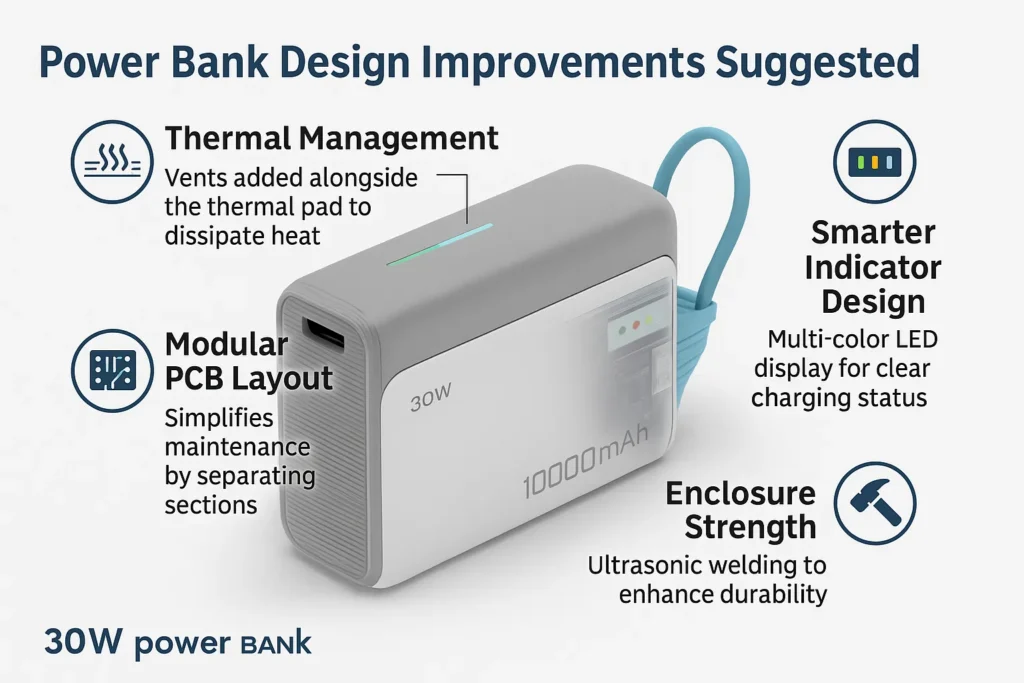

🔍 Power Bank Design Improvements Suggested
1. Thermal Management Enhancement
While thermal pads are present, additional venting or aluminum heat sinks could reduce surface temperature during fast charging. This would enhance the user experience and product longevity as part of an improved design.
2. Modular PCB Layout
Shifting to a modular board layout may reduce failure rates and simplify maintenance. This approach is increasingly seen in next-gen USB-C power bank designs, reflecting current design improvements.
3. Smarter Indicator Design
A segmented OLED or multi-color LED interface thus could give more detailed charging status, enhancing perceived value and design improvements.
4. Enclosure Strength
Improving clip quality and switching to ultrasonic welding thus could enhance drop resistance and structural rigidity, marking significant design improvements.
📐 Manufacturing Notes
When estimating manufacturing cost for this power bank, the major contributors include factors that drive design improvements:
- Battery cells: ~40% of total BOM
- PMIC and protocol chips: ~25%
- Enclosure and indicator: ~15%
- Assembly and testing: ~20%
Using these ratios, thus OEM brands can plan a power bank development budget more transparently and make informed pricing decisions.
🎯 Conclusion: Power Bank Design Improvement
This teardown and design review of a 30W fast charging compact power bank offers valuable benchmarks. Brands aiming to improve power bank design should focus on thermal control, user interface, and PCB modularity. Meanwhile, a precise manufacturing cost estimate ensures scalable production.
Whether you’re creating your first USB-C power bank or optimizing an existing model, aligning teardown insights with actionable product and development choices drives lasting success.
