Plastic injection molding is one of the most widely used manufacturing processes for producing high-volume, precision plastic parts. Whether you’re building consumer electronics, industrial enclosures, or medical devices, understanding this process is essential to reducing costs and accelerating time to market.

At WokooDesign, we specialize in turning your product concepts into functional, manufacturable parts. In this guide, you’ll learn how the injection molding process works, the materials involved, its pros and cons, and why it remains a go-to method for startups and established brands alike.

What Is Plastic Injection Molding?

Plastic injection molding is a manufacturing technique that involves injecting molten plastic into a steel or aluminum mold cavity, where it cools and solidifies into a finished shape. This process is ideal for mass-producing parts with consistent dimensions and intricate geometries.

The method relies on a two-part mold (core and cavity), high-pressure injection systems, and thermoplastic or thermosetting polymers. Once cooled, the part is ejected and ready for use or further assembly.

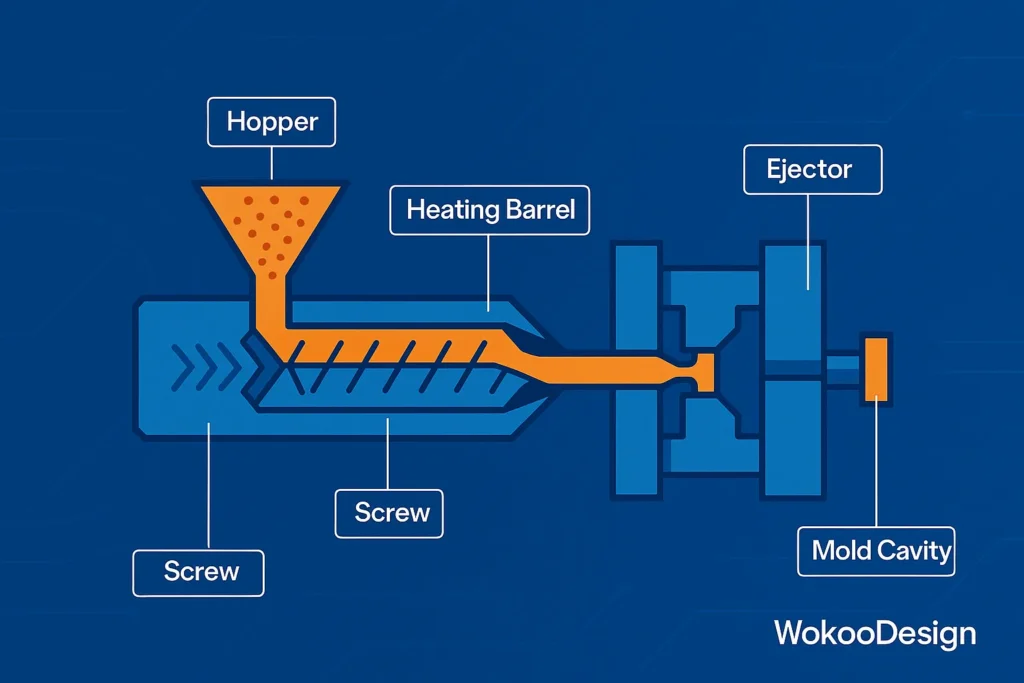

How the Plastic Injection Molding Process Works

Step 1: Mold Design

Before anything is produced, a custom mold must be designed based on the CAD model of the part. This includes selecting the right mold material, number of cavities, gate location, and draft angles for easy ejection.

Step 2: Material Preparation

Thermoplastic pellets—such as ABS, PC, or nylon—are dried and fed into the injection machine’s hopper. Material selection is critical, as it affects part strength, finish, and cost.

Step 3: Injection and Cooling

The plastic is heated until molten and injected into the mold under high pressure. The cavity is filled in milliseconds, then rapidly cooled to harden the plastic.

Step 4: Ejection and Finishing

After the part solidifies, ejector pins push it out of the mold. Some parts may require minor finishing like trimming, surface texturing, or ultrasonic welding.

Common Materials Used in Injection Molding

The success of plastic injection molding often depends on selecting the right material. Common thermoplastics used include:

• ABS – Strong, lightweight, and easy to mold
• PC – High impact resistance and clarity
• PP – Excellent chemical resistance
• Nylon – High strength and wear resistance
• TPU – Flexible yet durable

At WokooDesign, we provide material consultation to ensure your product performs as expected in both function and appearance.

Advantages and Limitations of Plastic Injection Molding

Advantages

• High-volume production with low per-part cost
• Excellent repeatability and tight tolerances
• Supports complex geometries and surface textures
• Wide range of materials available
• Low material waste

Limitations

• High upfront tooling cost
• Longer setup time
• Not cost-effective for very low quantities (under 100 pcs)

Applications of Plastic Injection Molding in Real Projects

At WokooDesign, injection molding plays a critical role in helping our clients bring their designs to life.

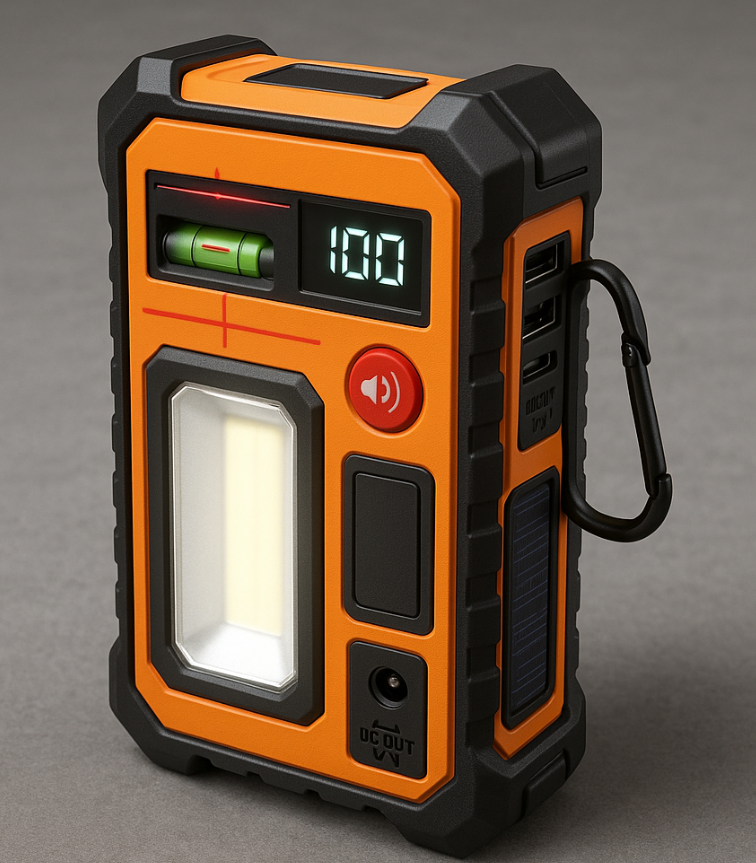

One recent project involved a custom-designed power bank, where we handled the entire plastic enclosure development—from concept sketch and 3D modeling to tooling and mass production.
The housing required:

• High precision to fit battery and PCB
• Scratch-resistant matte finish
• Custom color matching for branding

Thanks to our DFM expertise and supplier coordination, we helped reduce mold iteration time and completed full production in under six weeks.

Why Choose WokooDesign for Custom Injection Molding?

With over a decade of experience in international product development, WokooDesign helps brands and startups:

• Validate design through prototyping and mold flow analysis
• Select mold makers and control costs
• Manage quality control and shipment inspection
• Scale efficiently from samples to mass production

Conclusion: Let’s Build Something Together

Plastic injection molding remains one of the most powerful tools in product development. But to fully unlock its potential, you need the right partner—one who understands both engineering and manufacturing.

Contact WokooDesign today to discuss your next idea. Let us turn your design into a manufacturable reality.
