Screwdrivers with advanced mechanics, like the FreeTwist ratchet screwdriver from DesignNest, demand a closer look. In this professional screwdriver teardown, we dissect its internal structure, material choices, and parts configuration to reveal what makes this tool both innovative and practical. This post highlights the screwdriver internal layout, provides a screwdriver parts list overview, and analyzes its components and design tradeoffs for engineering evaluation.

Disassembly Steps

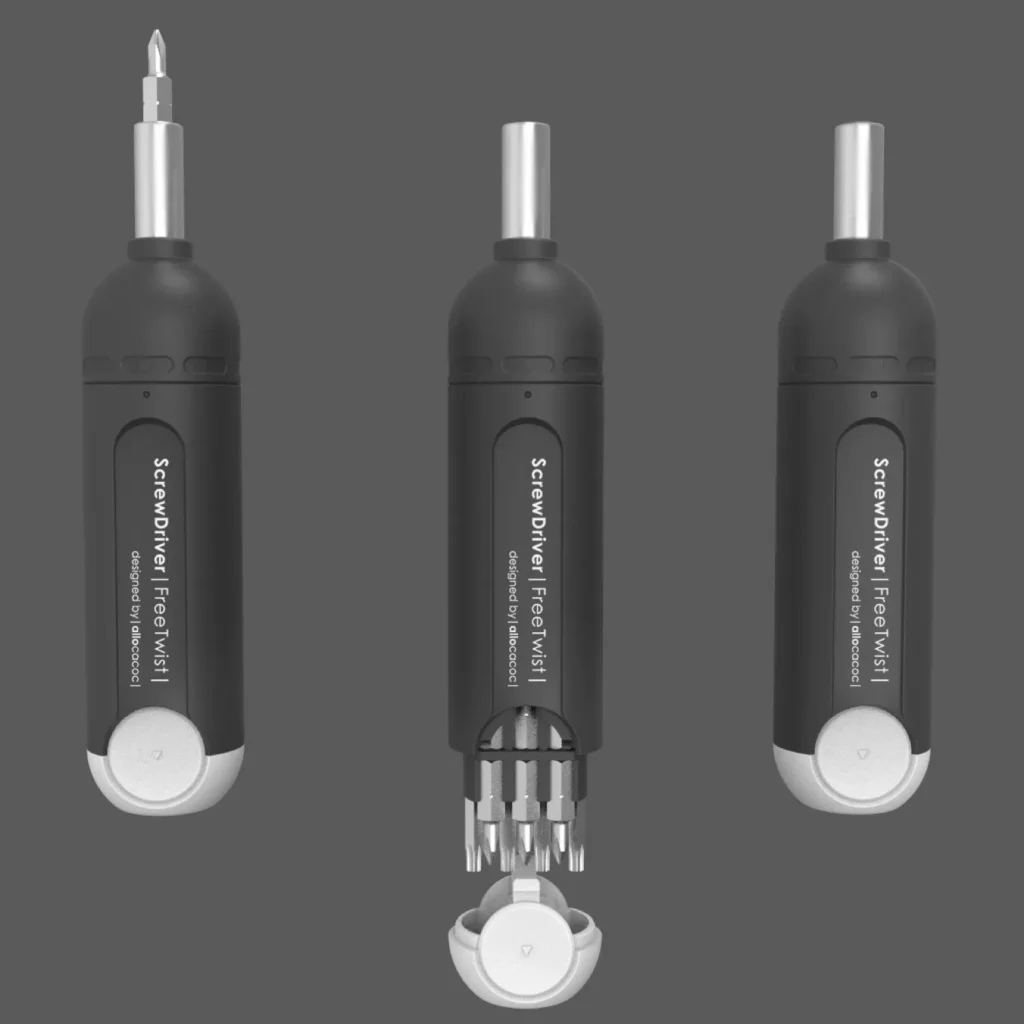

The FreeTwist screwdriver is designed with user-centric modularity. Disassembly begins with removing the rotating handle cap, which reveals the internal bit storage chamber. Below that, the ratchet mechanism can be accessed by carefully releasing the snap-fitted shell. For an effective screwdriver teardown, adhere to these steps:

1. Twist the rear cap counterclockwise to access the bit container.
2. Pull out the magnetic shaft assembly.
3. Unscrew the ratchet shell using a precision driver.
4. Carefully extract the ball bearing and gear system.

Internal Structure Analysis

The screwdriver internal structure features a compact ratchet mechanism enclosed within dual ABS shells. The magnetic bit holder is fixed to a steel shaft that connects to the ratchet gear. Although there’s no PCB, the “screwdriver PCB layout” placeholder can represent the gear-and-lock layout inside. This step-by-step teardown gives insight into:

• Gear ratio and locking teeth position
• Twist-to-release mechanism with spring return
• Rotational torque transfer points via brass inserts

Material & Component Overview

Most external parts use impact-grade ABS and TPR rubber for the grip. Internal gears are made of chrome-vanadium steel, and the magnetic tip uses neodymium magnets. Here’s a simplified screwdriver parts list:

• TPR-coated ABS handle
• Steel shaft with magnetic bit tip
• Internal ratchet gears
• Spring set and steel ball bearings
• End-cap with twist release

From a screwdriver material perspective, this balance of plastic and metal ensures both durability and weight efficiency, critical aspects of any teardown analysis.

Engineering Highlights & Weaknesses

Notably, the ratchet allows free rotation in both directions with a central lock. This ergonomic design enhances usability in tight spaces. However, potential weaknesses include:

• Limited torque strength at the plastic gear contact
• Bit storage lacks locking slots, risking accidental drop
• Ratchet gear may wear with heavy-duty use, a consideration revealed during the teardown process

Potential Improvements

Based on the teardown findings, we suggest the following upgrades:

• Reinforce gear teeth with hardened steel
• Add locking grooves for each bit slot
• Improve handle knurling for better grip

These ideas can enhance the tool’s performance and perceived quality.

Conclusion & Technical Takeaways

This screwdriver teardown reveals a clever balance between innovation and mass-manufacturability. The FreeTwist excels in form factor and user experience but could benefit from material and structural refinements. For brands seeking to build a better screwdriver, insights from this comprehensive teardown inspire design upgrades and OEM development.
